ALX Series Folding ebike Battery

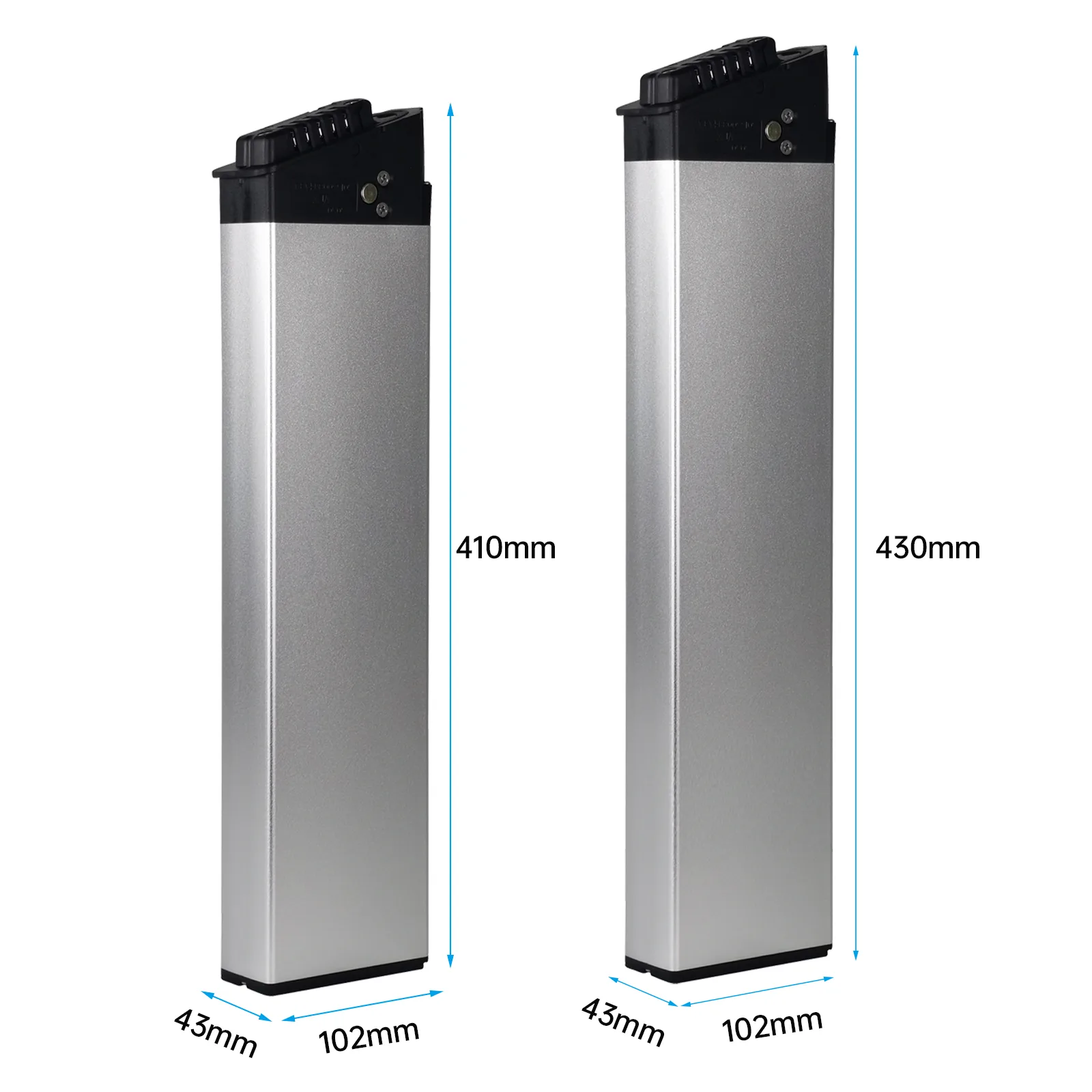

ALX-006 Folding ebike Battery
| Model | Dimensions | Voltage | Capacity | Cell |
|---|---|---|---|---|
| JD-006FZ (410) | 410×100×40mm | 36V | 13Ah | DMEGC |
| JD-006FZ (410) | 410×100×40mm | 36V | 15Ah | DMEGC |
| JD-006FZ (410) | 410×100×40mm | 36V | 17.5Ah | Samsung |
| JD-006FZ (410) | 410×100×40mm | 48V | 10.5Ah | Samsung |
| JD-006FZ (430) | 430×100×40mm | 36V | 10.4Ah | DMEGC |
| JD-006FZ (430) | 430×100×40mm | 36V | 13Ah | DMEGC |
| JD-006FZ (430) | 430×100×40mm | 36V | 15Ah | DMEGC |
| JD-006FZ (430) | 430×100×40mm | 36V | 17.5Ah | Samsung |
| JD-006FZ (430) | 430×100×40mm | 48V | 10.4Ah | DMEGC |
| JD-006FZ (430) | 430×100×40mm | 48V | 12Ah | DMEGC |
| JD-006FZ (430) | 430×100×40mm | 48V | 14Ah | Samsung |
ALX-009 18650 Folding ebike Battery
| Model | Dimensions | Voltage | Capacity | Cell |
|---|---|---|---|---|

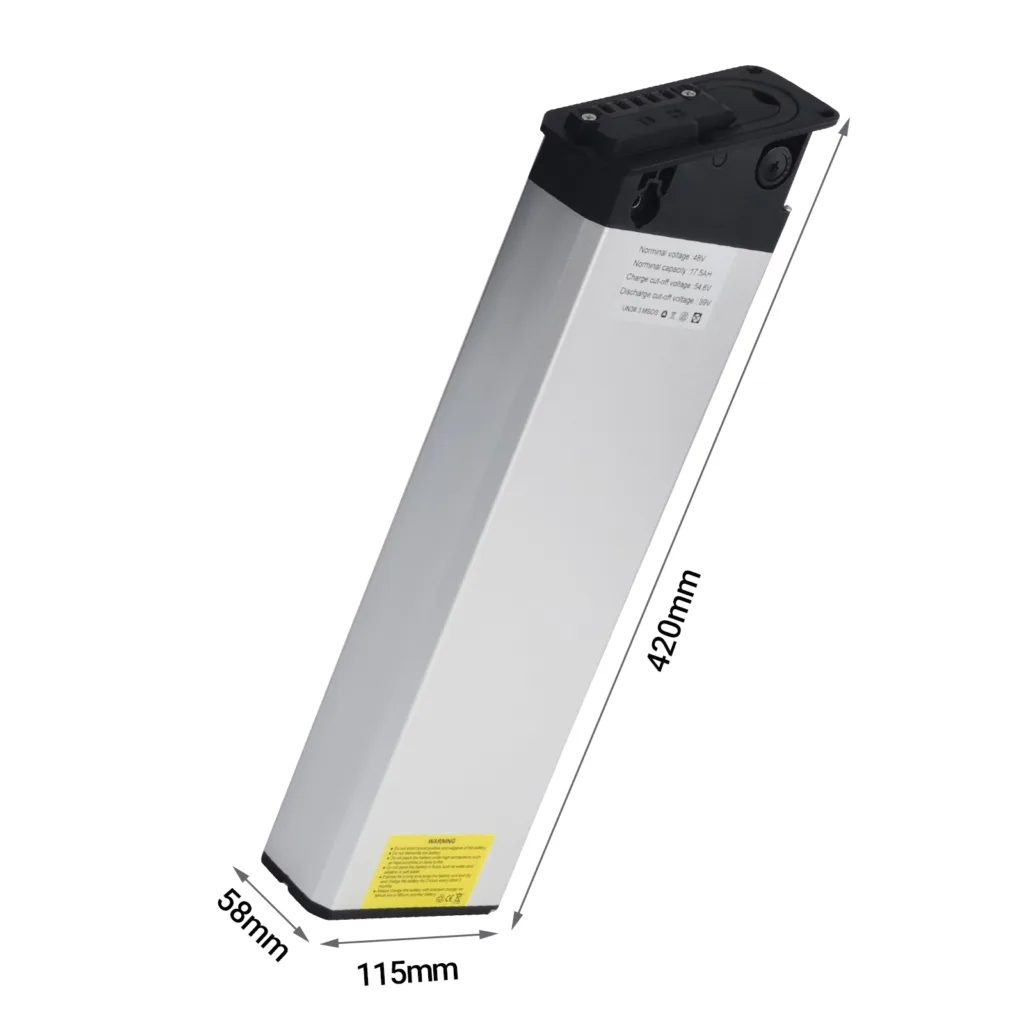

| JD-009FZ | 420×115×58mm | 36V | 18.2Ah | DMEGC |
| JD-009FZ | 420×115×58mm | 36V | 21Ah | DMEGC |
| JD-009FZ | 420×115×58mm | 36V | 24.5Ah | Samsung |
| JD-009FZ | 420×115×58mm | 48V | 13Ah | DMEGC |
| JD-009FZ | 420×115×58mm | 48V | 15Ah | DMEGC |
| JD-009FZ | 420×115×58mm | 48V | 17.5Ah | Samsung |
| JD-009FZ | 420×115×58mm | 52V | 14Ah | Samsung |
| JD-009FZ | 420×115×58mm | 52V | 17.5Ah | Samsung |
ALX-051 Folding ebike Battery
| Model | Dimensions | Voltage | Capacity | Cell |
|---|---|---|---|---|
| JD-051FZ | 410×115×58mm | 36V | 18.2Ah | DMEGC |
| JD-051FZ | 410×115×58mm | 36V | 21Ah | DMEGC |
| JD-051FZ | 410×115×58mm | 36V | 24.5Ah | Samsung |
| JD-051FZ | 410×115×58mm | 48V | 13Ah | DMEGC |
| JD-051FZ | 410×115×58mm | 48V | 15Ah | DMEGC |
| JD-051FZ | 410×115×58mm | 48V | 17.5Ah | Samsung |
| JD-051FZ | 410×115×58mm | 52V | 14Ah | Samsung |
| JD-051FZ | 410×115×58mm | 52V | 17.5Ah | Samsung |

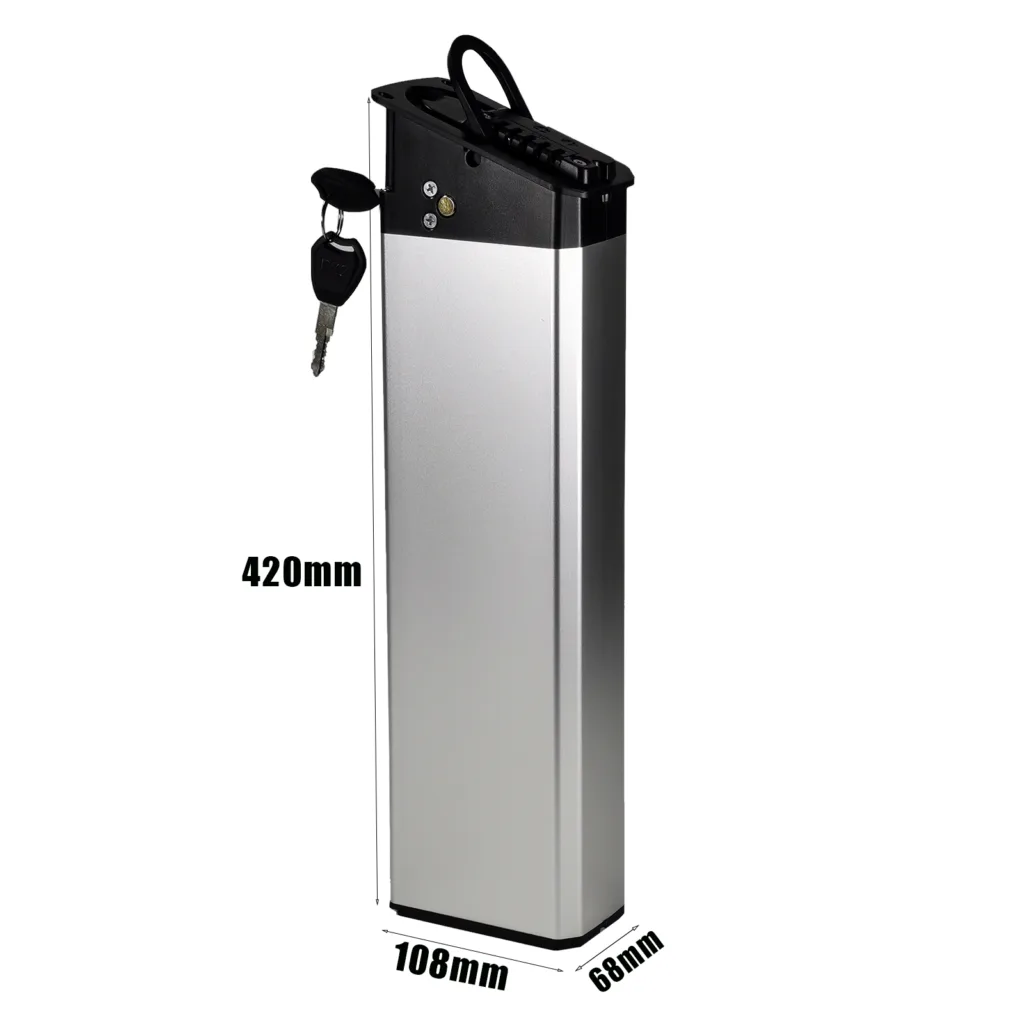

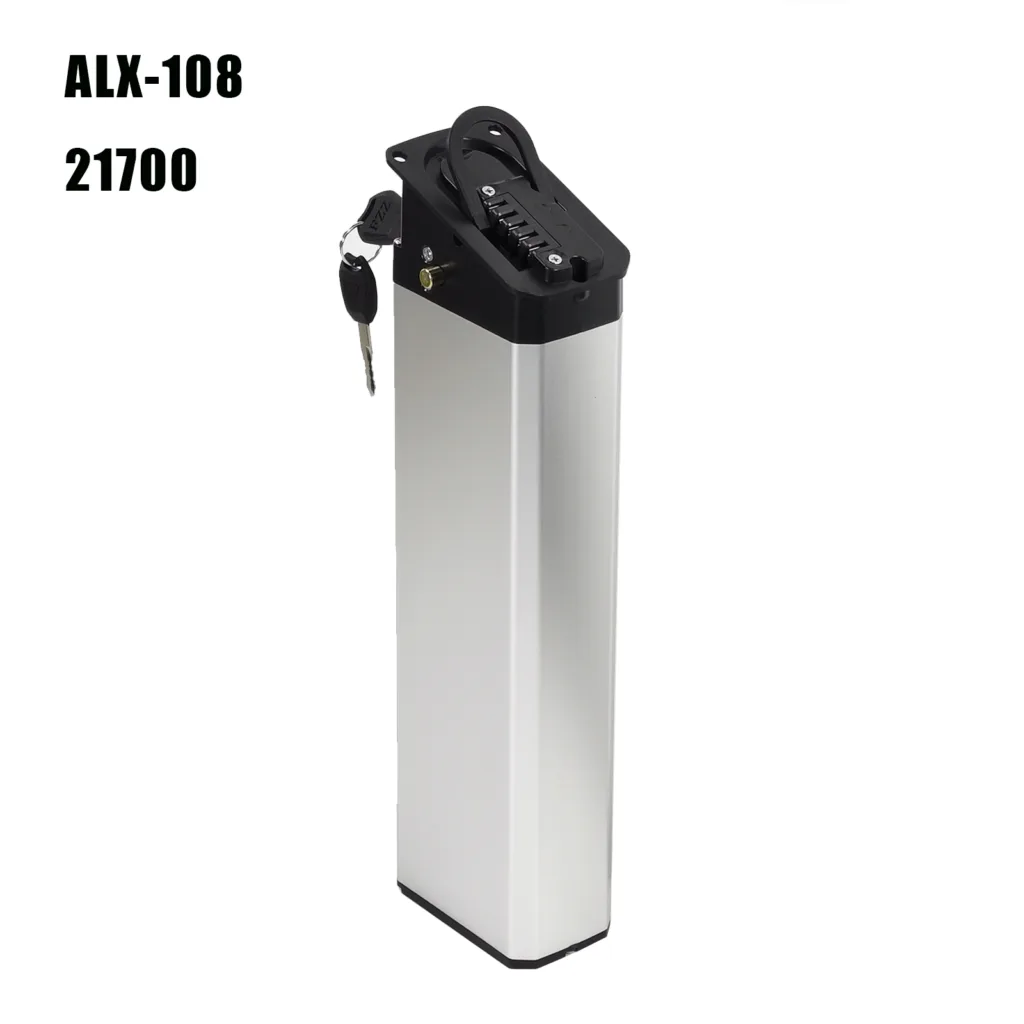

ALX-108 Folding ebike Battery
| Model | Dimensions | Voltage | Capacity | Cell |
|---|---|---|---|---|
| JD-108FZ | 420×108×68mm | 48V | 20Ah | EVE |
| JD-108FZ | 420×108×68mm | 52V | 20Ah | EVE |
| JD-108FZ | 420×108×68mm | 48V | 20Ah | Samsung |
| JD-108FZ | 420×108×68mm | 52V | 20Ah | Samsung |
ALX-131 18650 Folding ebike Battery
| Model | Dimensions | Voltage | Capacity | Cell |
|---|---|---|---|---|
| JD-131FZ | 420×108×68mm | 48V | 20Ah | EVE |
| JD-131FZ | 420×108×68mm | 52V | 20Ah | EVE |
| JD-131FZ | 420×108×68mm | 48V | 20Ah | Samsung |
| JD-131FZ | 420×108×68mm | 52V | 20Ah | Samsung |

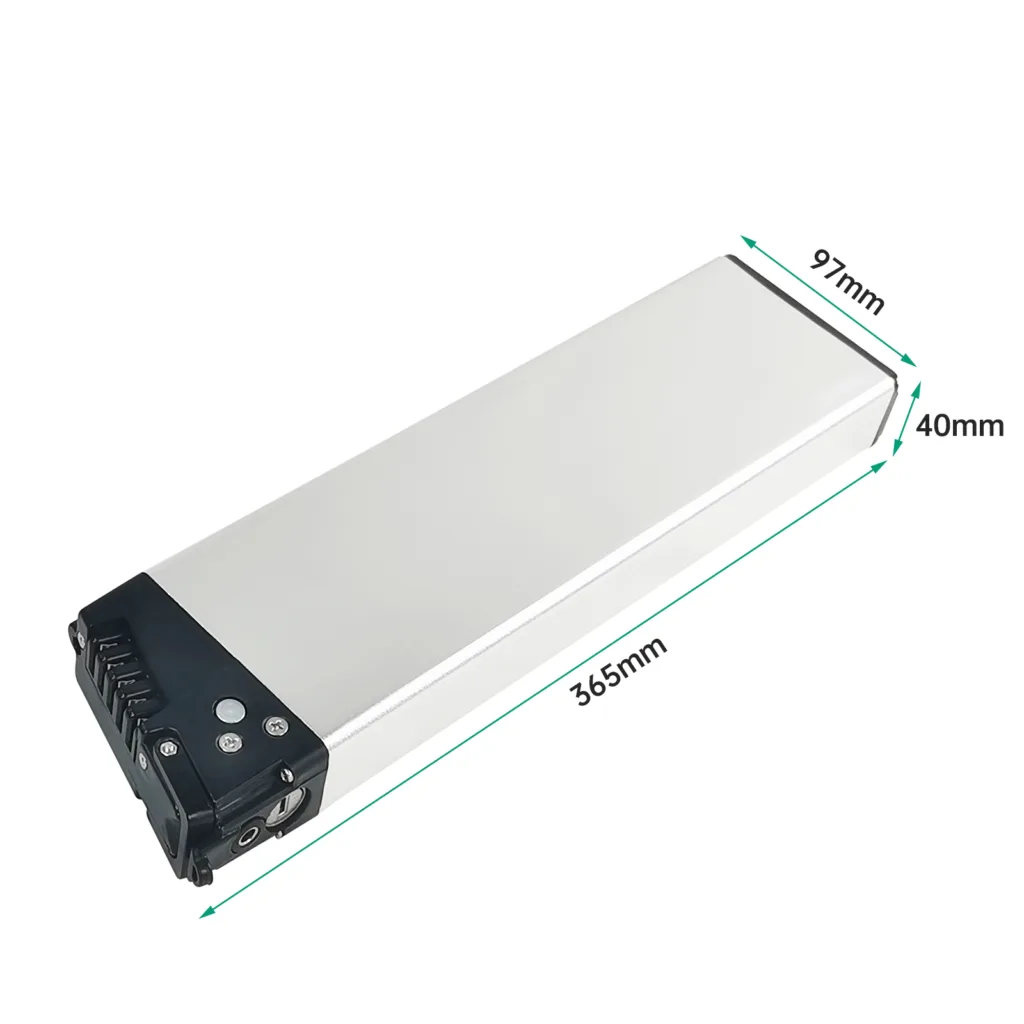

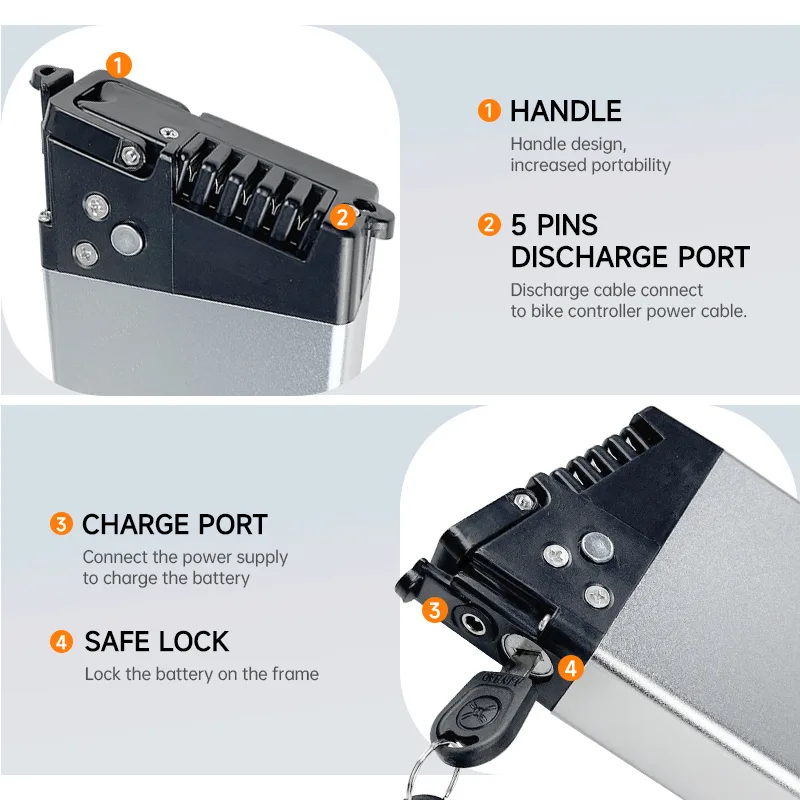

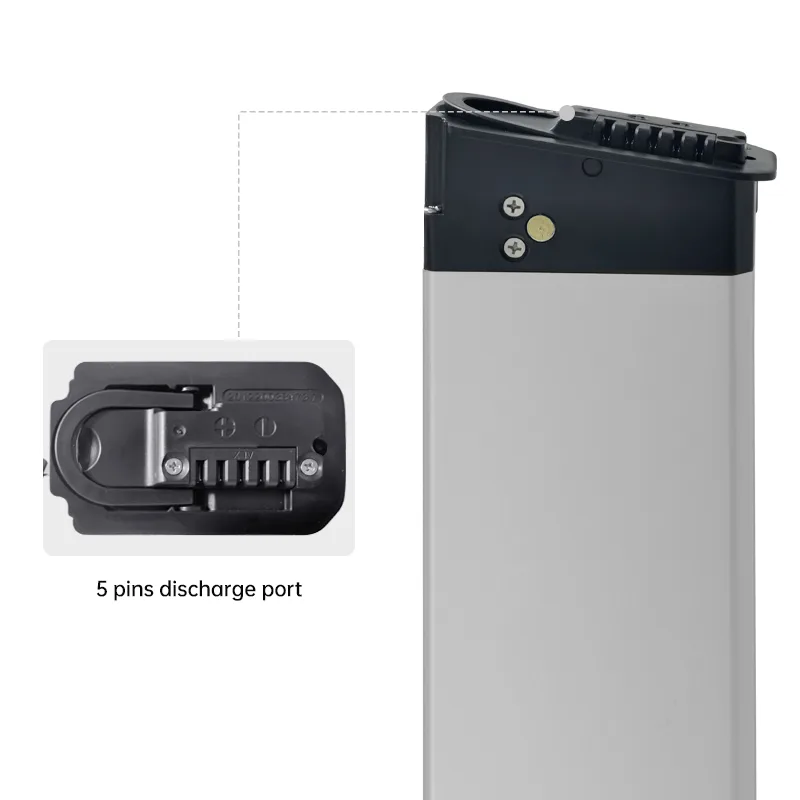

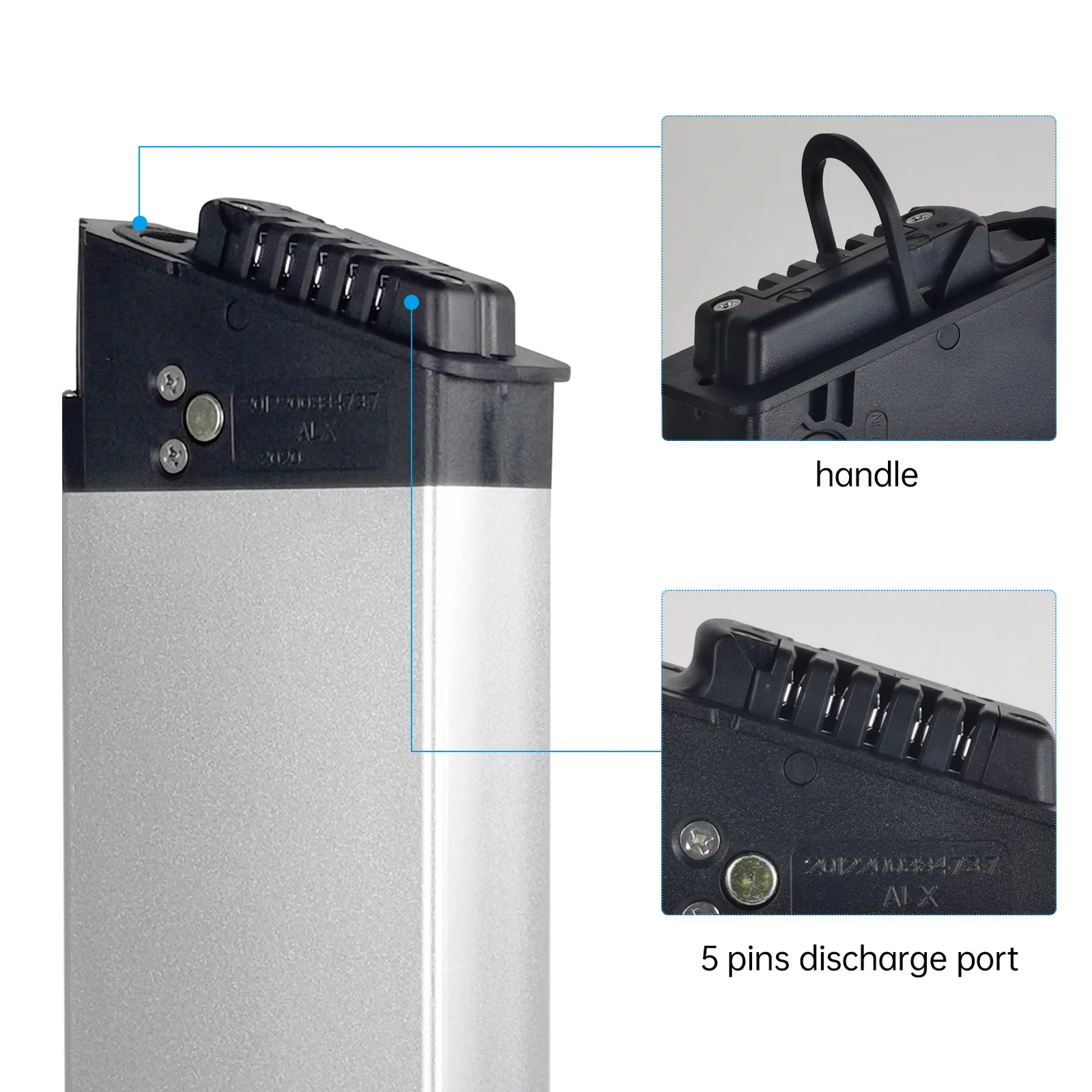

ALX-003 4pins & 5pins Folding ebike Battery
| Model | Dimensions | Voltage | Capacity | Cell |
|---|---|---|---|---|

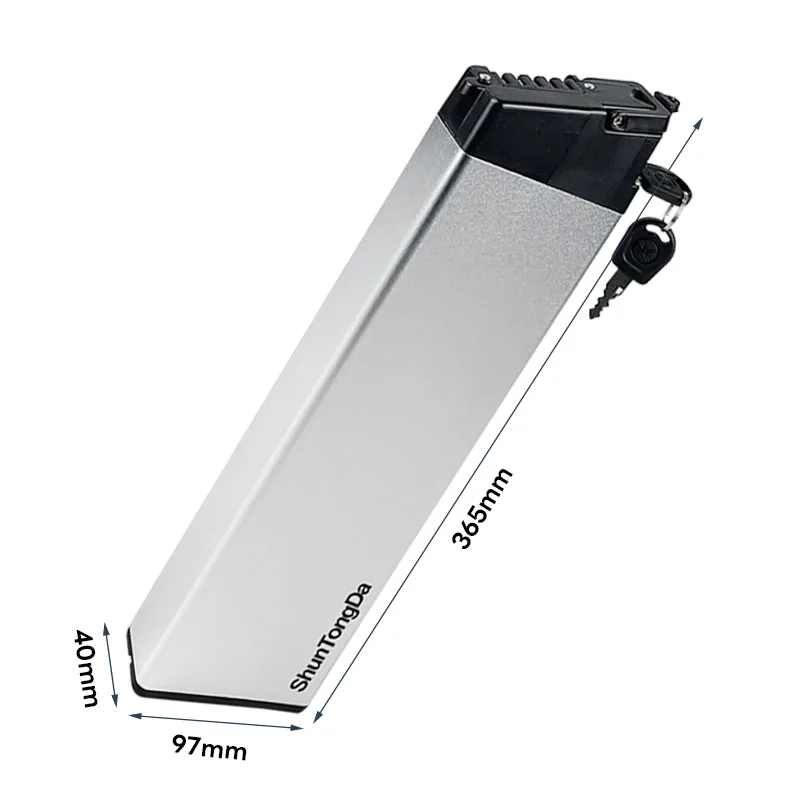

| JD-003FZ | 365×100×40mm | 36V | 10.4Ah | DMEGC |
| JD-003FZ | 365×100×40mm | 36V | 12Ah | DMEGC |
| JD-003FZ | 365×100×40mm | 36V | 14Ah | Samsung |
| JD-003FZ | 365×100×40mm | 48V | 10.5Ah | Samsung |

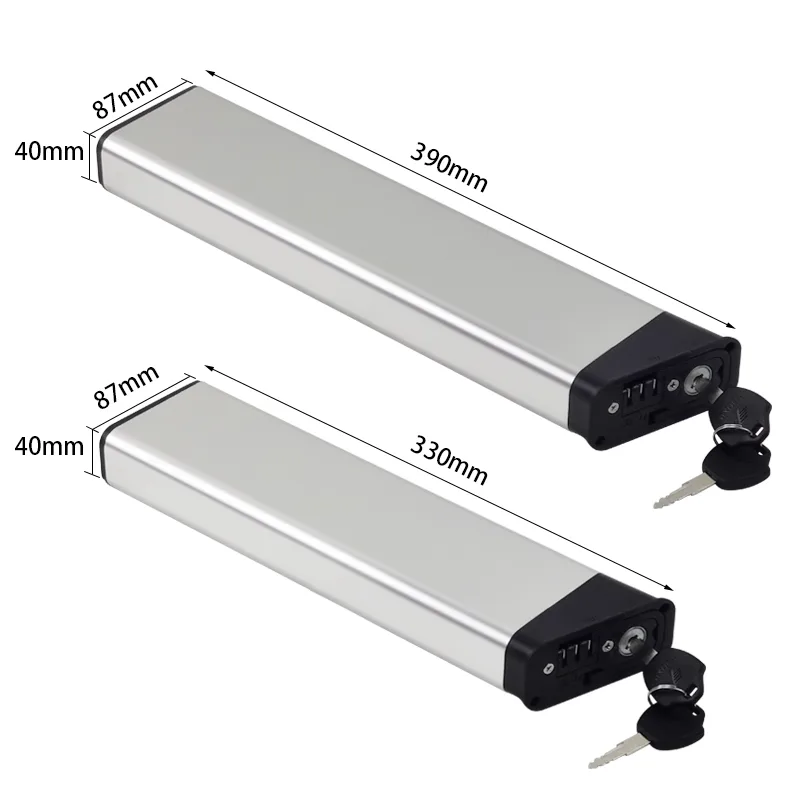

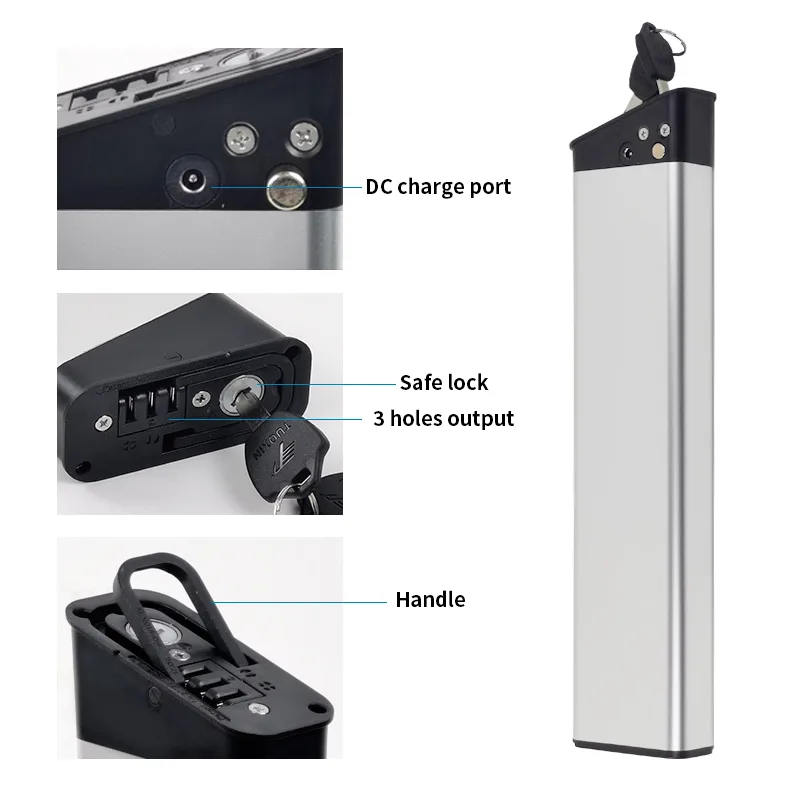

ALX-014 3pins Folding ebike Battery
| Model | Dimensions | Voltage | Capacity | Cell |
|---|---|---|---|---|
| JD-014FZ | 390×87×40mm | 36V | 7.8Ah | DMEGC |
| JD-014FZ | 390×87×40mm | 36V | 10.4Ah | DMEGC |
| JD-014FZ | 390×87×40mm | 36V | 12Ah | DMEGC |
| JD-014FZ | 390×87×40mm | 36V | 14Ah | Samsung |
| JD-014FZ | 330×87×40mm | 36V | 7.8Ah | DMEGC |
| JD-014FZ | 330×87×40mm | 36V | 9Ah | DMEGC |
| JD-014FZ | 330×87×40mm | 36V | 10.5Ah | Samsung |
ALX-015 Folding ebike Battery
| Model | Dimensions | Voltage | Capacity | Cell |
|---|---|---|---|---|
| JD-015FZ | 430×100×40mm | 36V | 10.4Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 36V | 13Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 36V | 15Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 36V | 17.5Ah | Samsung |
| JD-015FZ | 430×100×40mm | 48V | 10.4Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 48V | 12Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 48V | 14Ah | Samsung |
ALX-059 Folding ebike Battery
| Model | Dimensions | Voltage | Capacity | Cell |
|---|---|---|---|---|
| JD-015FZ | 430×100×40mm | 36V | 10.4Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 36V | 13Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 36V | 15Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 36V | 17.5Ah | Samsung |
| JD-015FZ | 430×100×40mm | 48V | 10.4Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 48V | 12Ah | DMEGC |
| JD-015FZ | 430×100×40mm | 48V | 14Ah | Samsung |
